Product Description

Basic Specifications
Model NO.
SHP-110
Type
Stone Honeycomb Panel
Material
Granite, Marble, Aluminum Sheet
Fire Resistance
A Grade
Shape
Flat, Wave, Curved, Customized
Thickness
10mm - 30mm or Customized
Max Size
1800mm x 3200mm
Surface
Polished, Honed, Flamed, Brushed
Product Overview

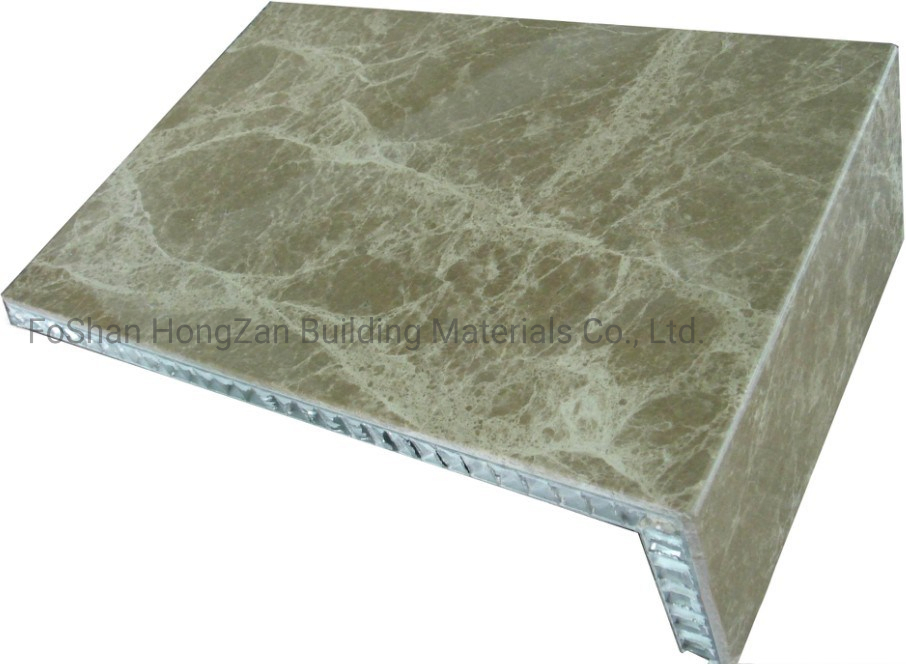

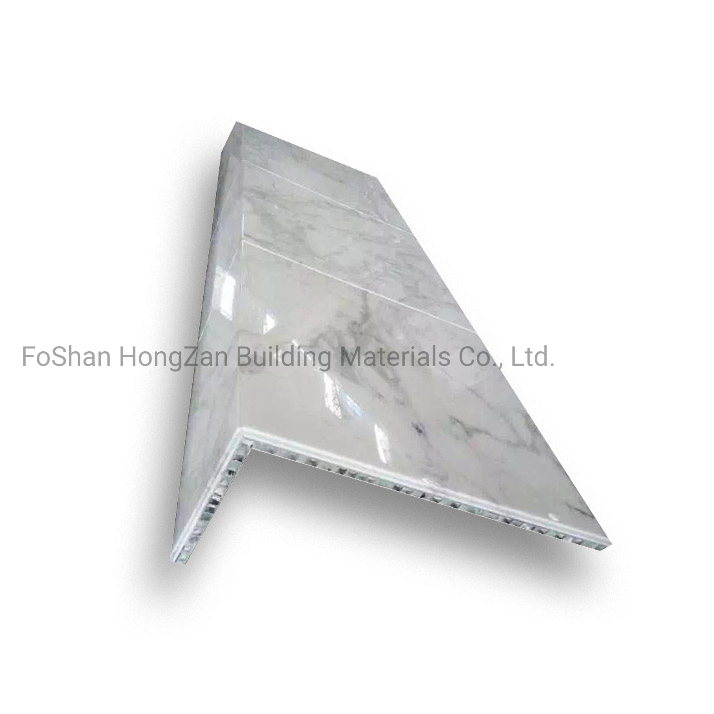

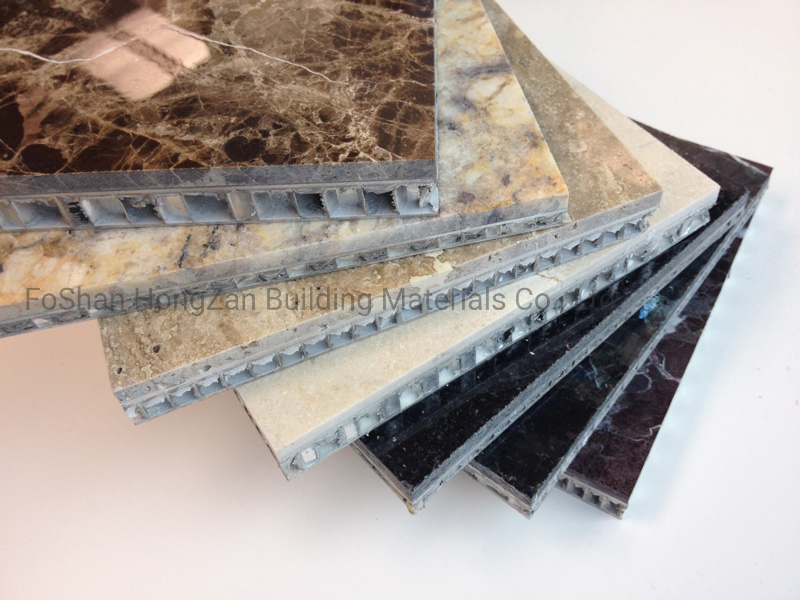

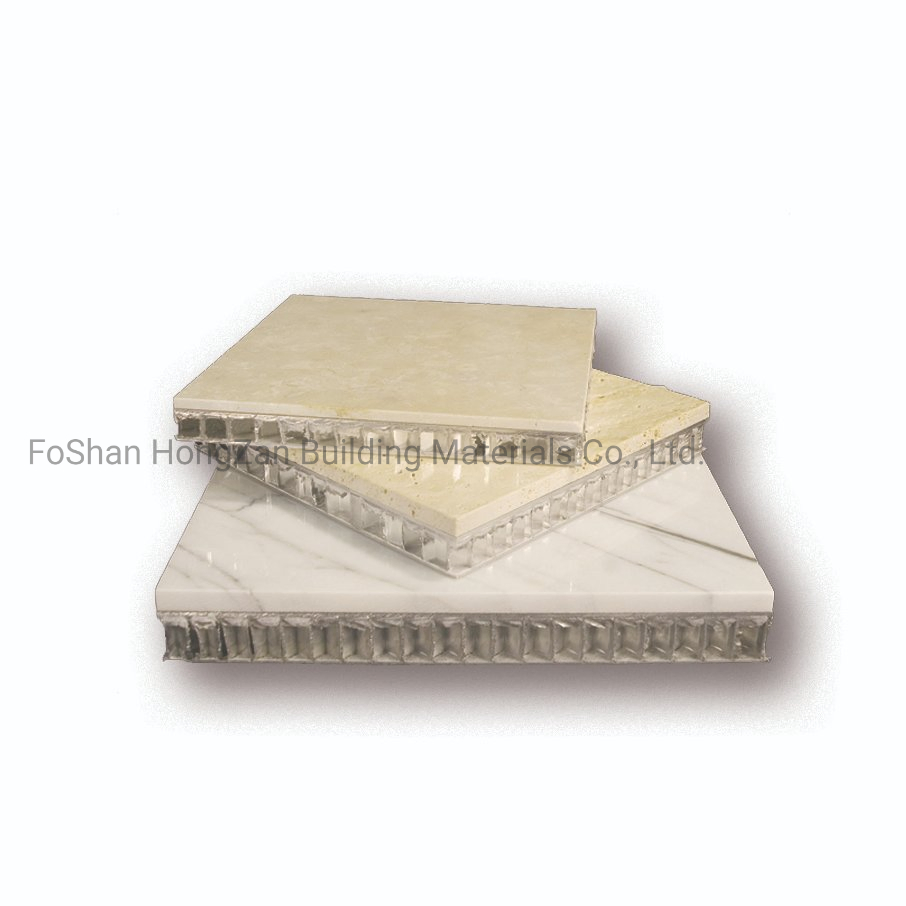

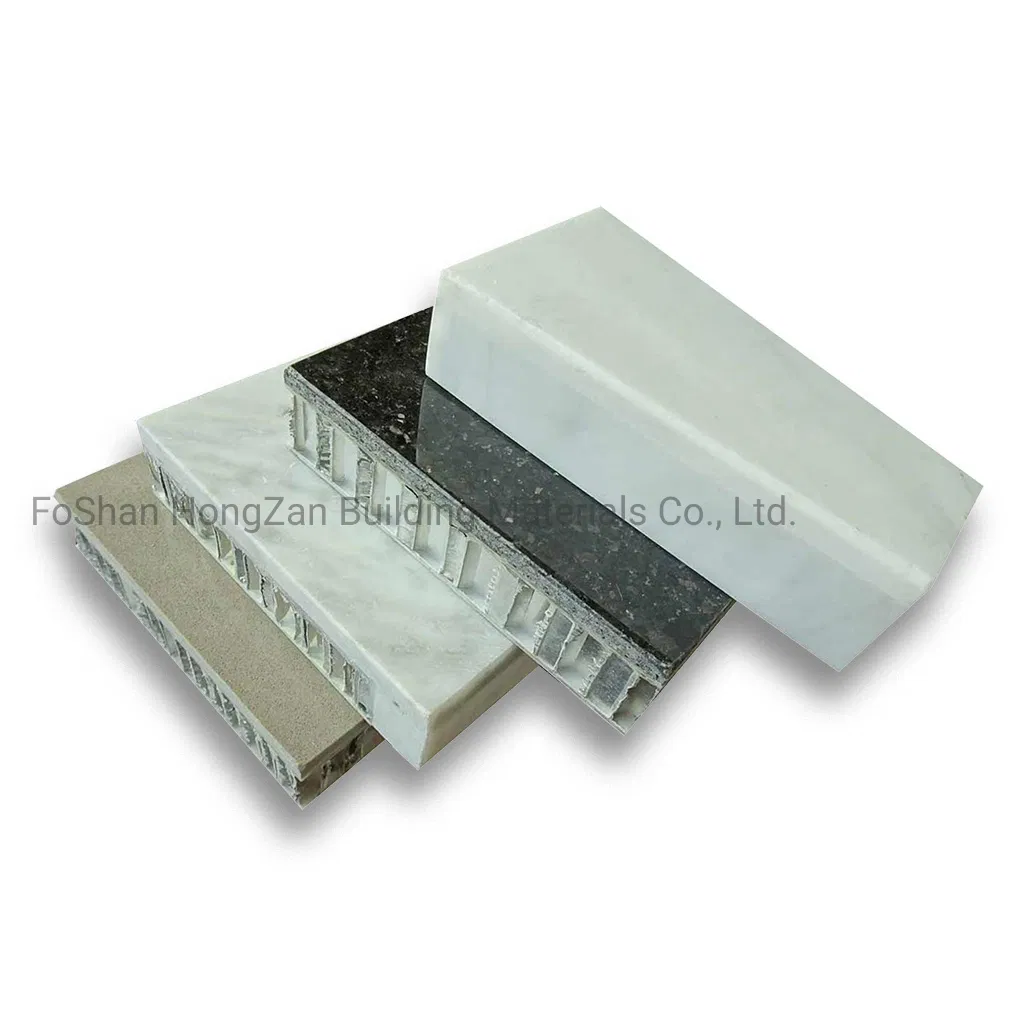

The Stone Honeycomb Panel is a high-tech composite product featuring natural stone veneers (granite, marble, travertine, or porcelain) bonded to an aluminum honeycomb backing. This advanced structure maintains the aesthetic beauty of natural stone while overcoming traditional limitations such as heavy weight and brittleness.

Key Advantages:
  • 80% less weight than solid stone slabs
  • Impact strength 60 times greater than 3cm granite
  • Tested to over 400PSF wind load capacity
  • Excellent seismic resistance and flexibility
  • High flexural strength for larger panel sizes
  • Acid freeze-thaw and explosion resistance
Production Capacity
Product Type Annual Capacity
Aluminum Honeycomb Panels500,000 sqm
Stone & Ceramic Honeycomb Panels80,000 sqm
Aluminum Honeycomb Core4.5 million sqm
Solid Aluminum Sheets3,000,000 sqm
Structure & Installation

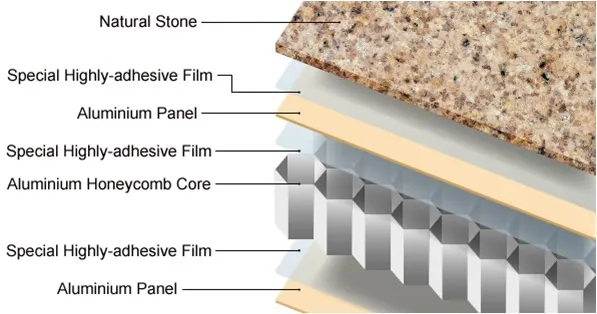

Panel Structure

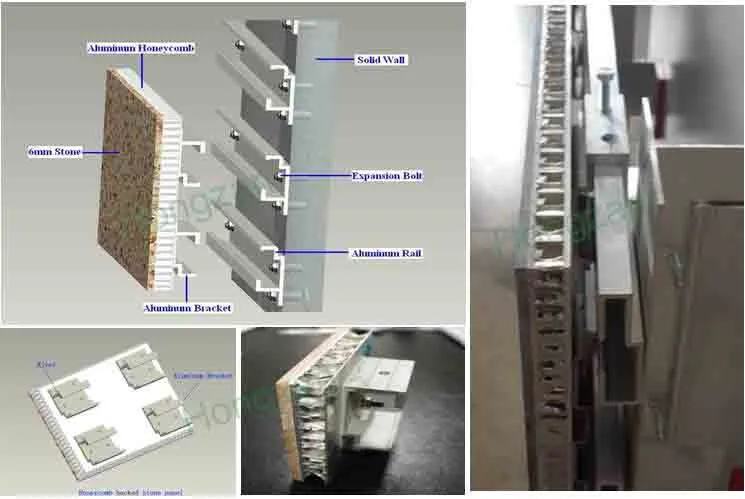

Installation System 1

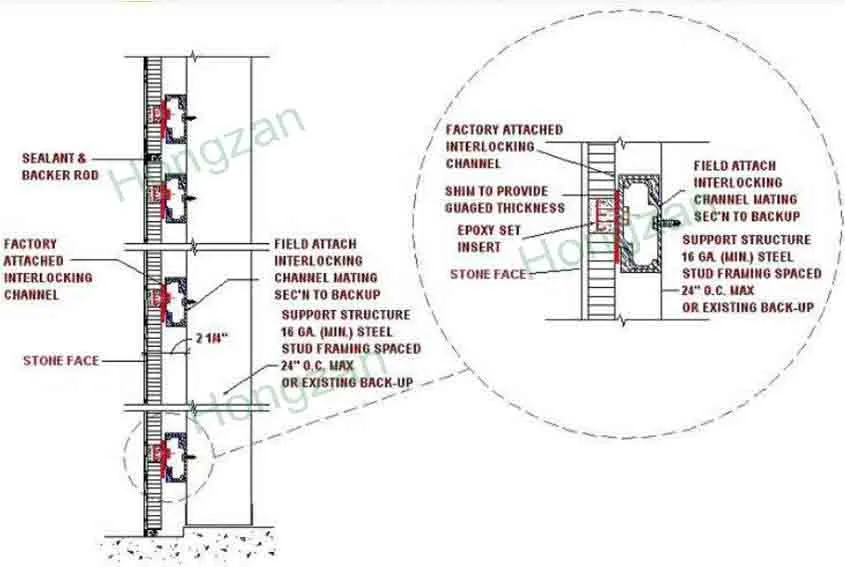

Installation System 2
Comparison: Honeycomb vs. Traditional Slab
Feature Traditional Stone Slab Stone Honeycomb Panels
Weight (20-30mm) ~75kg/m² ~15kg/m²
Flexibility Brittle, unable to bend Bendable without cracking
Max Size ≤ 600 x 600 mm Up to 1600 x 3200 mm
Safety Cracks easily on impact Punctate cracking only
Applications & Packaging

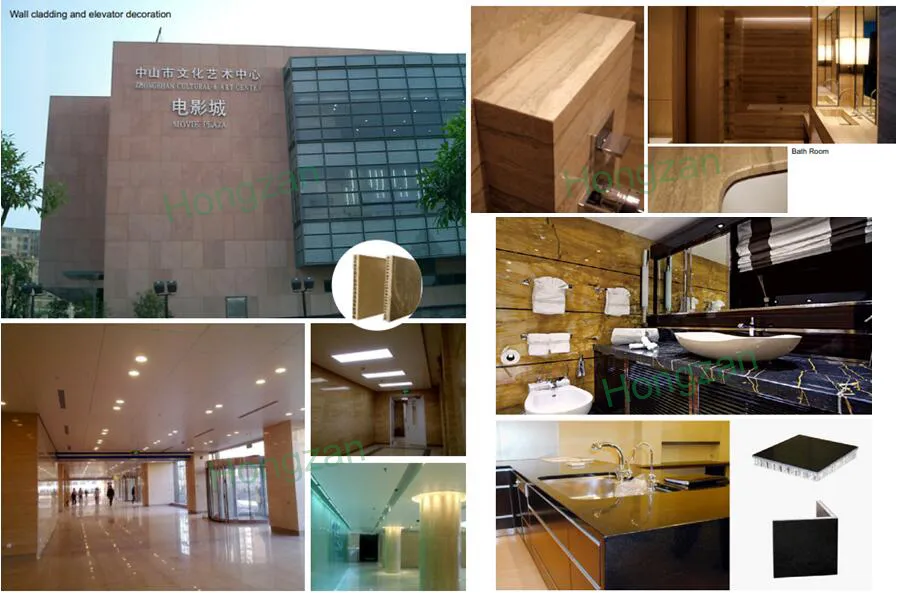

Application Show

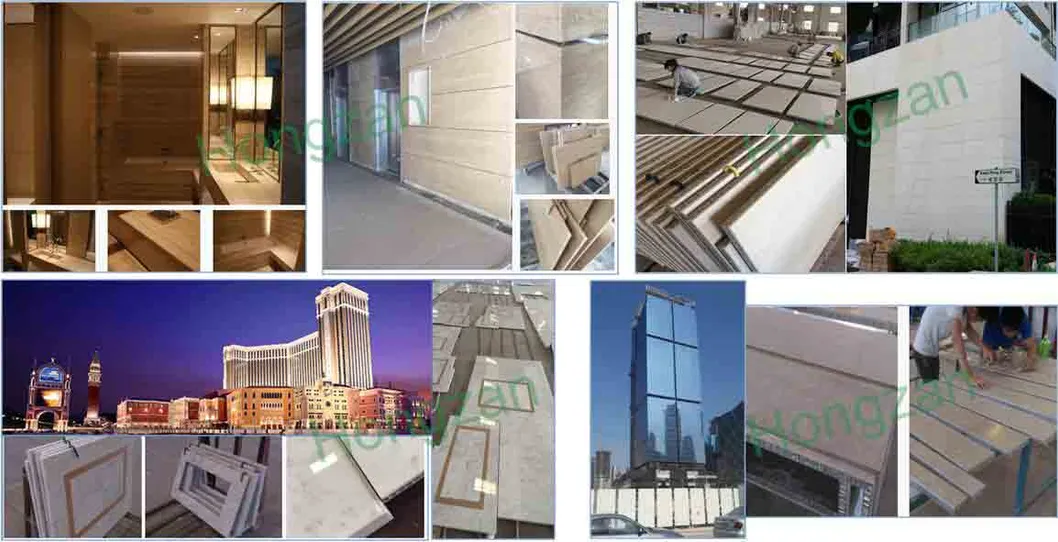

Project Display
Export Packaging
International Quality Standards

Our products have obtained internationally recognized certificates and test reports regarding fire rating, sound insulation, and structural integrity, including ISO 9001:2008, Lloyd's A-class fire rate, BS 476, EN13501-1, and ASTM standards.

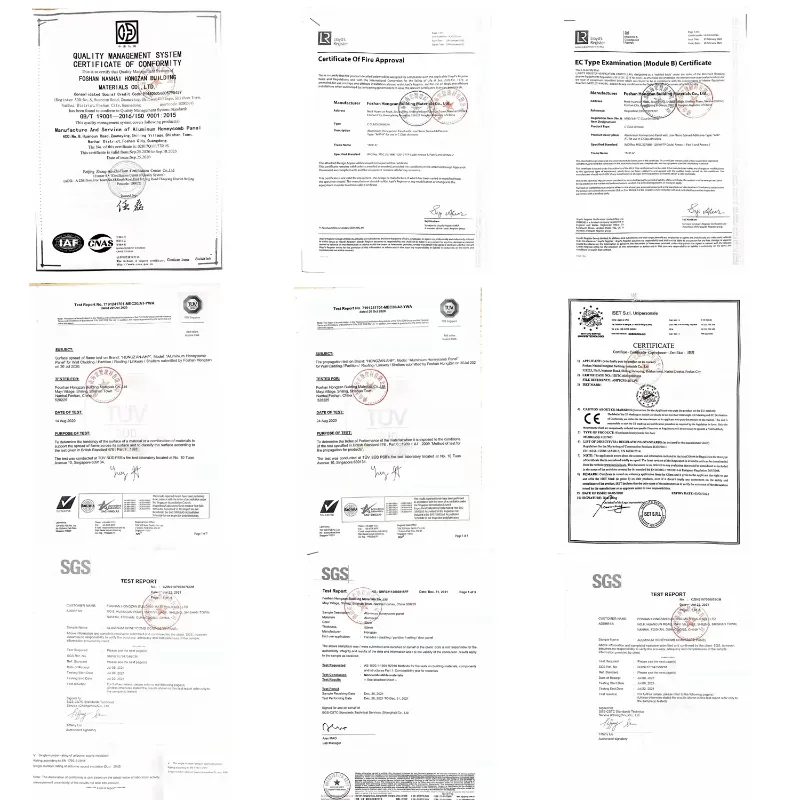

Certificates
Frequently Asked Questions
Do you provide free samples?
Yes, we provide product samples free of charge for quality evaluation.
How do you ensure reliable quality?
We maintain a strict QA system and are ISO 9001:2008 certified. Our products pass BS, IMO, CE EN, and ASTM tests. Third-party inspections are always welcome.
What is your monthly production capacity?
Our current production capacity is approximately 50,000 square meters per month.
Can we have a live video tour of the factory?
Absolutely! We welcome customers to schedule a live video visit to inspect our production lines and facility.
What are the main applications for these panels?
They are widely used for exterior and interior wall cladding, elevator interiors, partitions, flooring, and high-end furniture like counter tops.
What is the fire resistance rating?
The panels achieve an A Grade fire resistance rating, making them suitable for high-rise buildings and marine applications.
