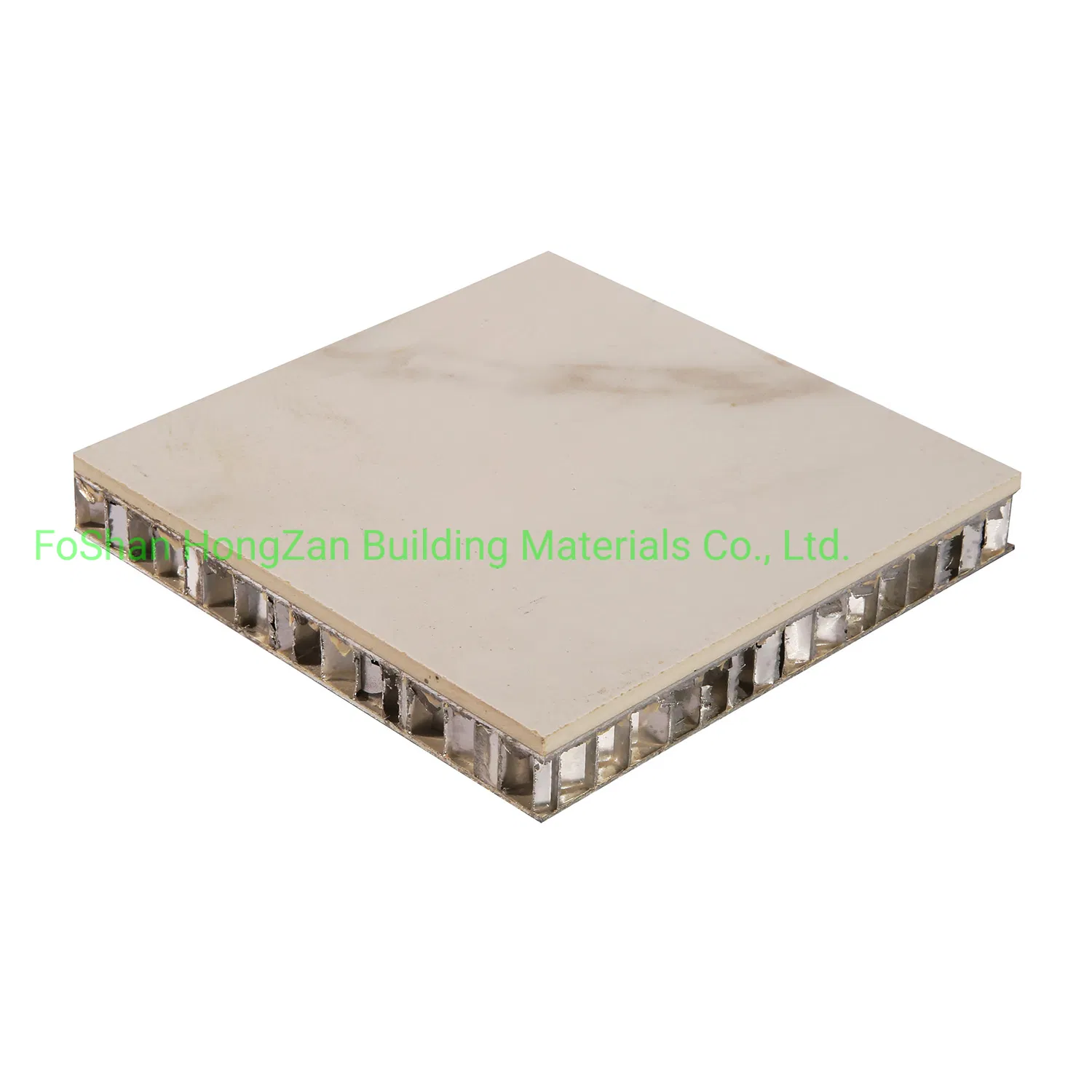

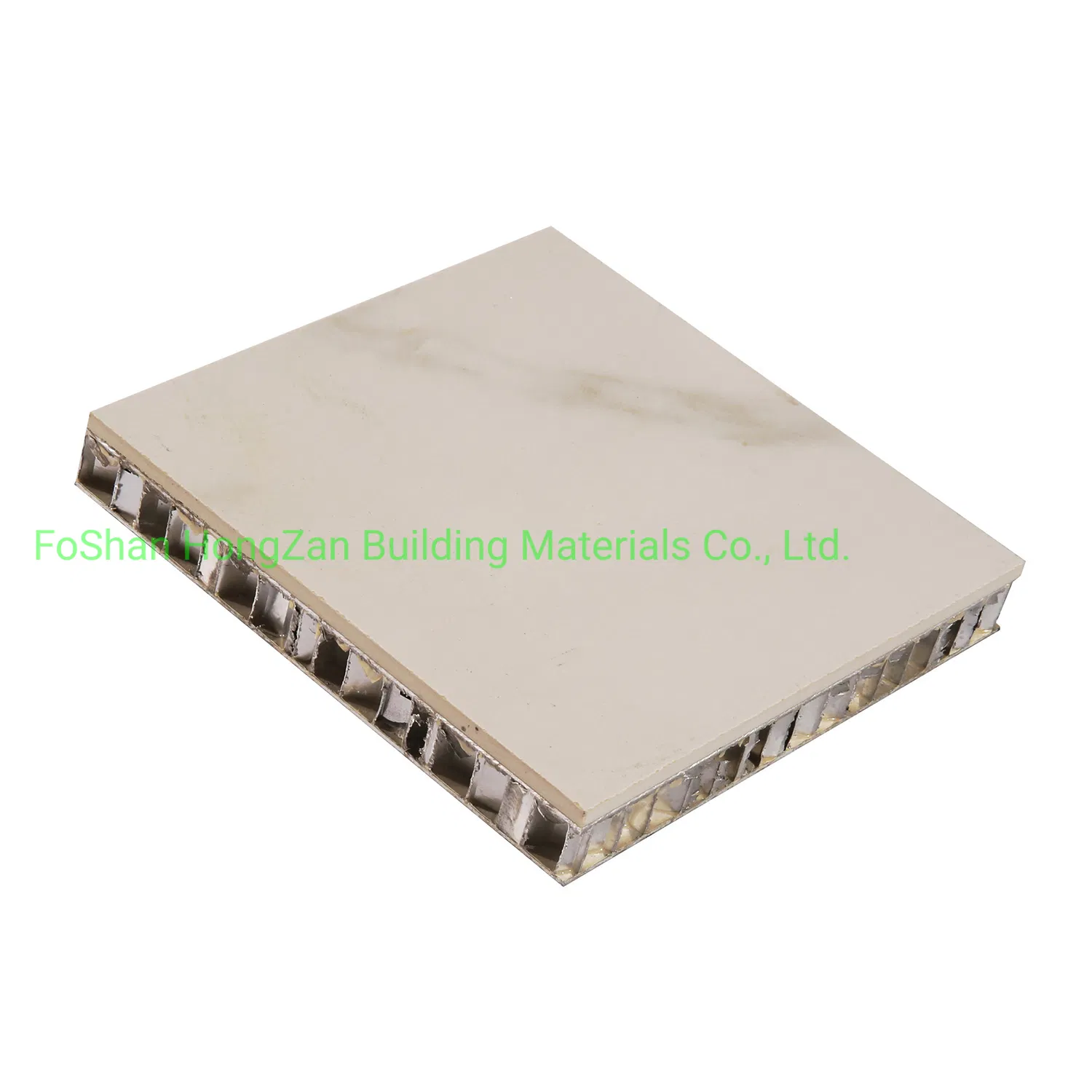

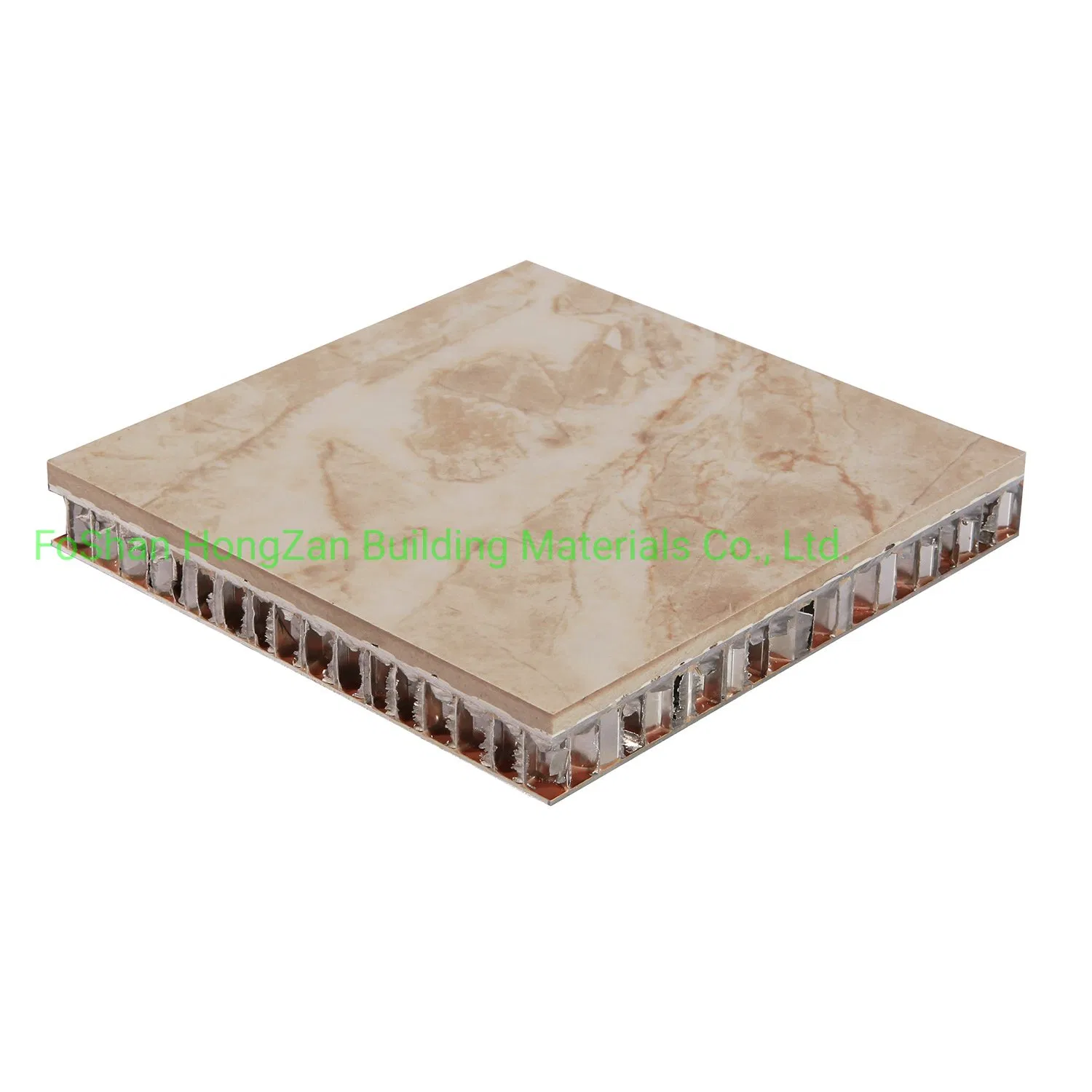

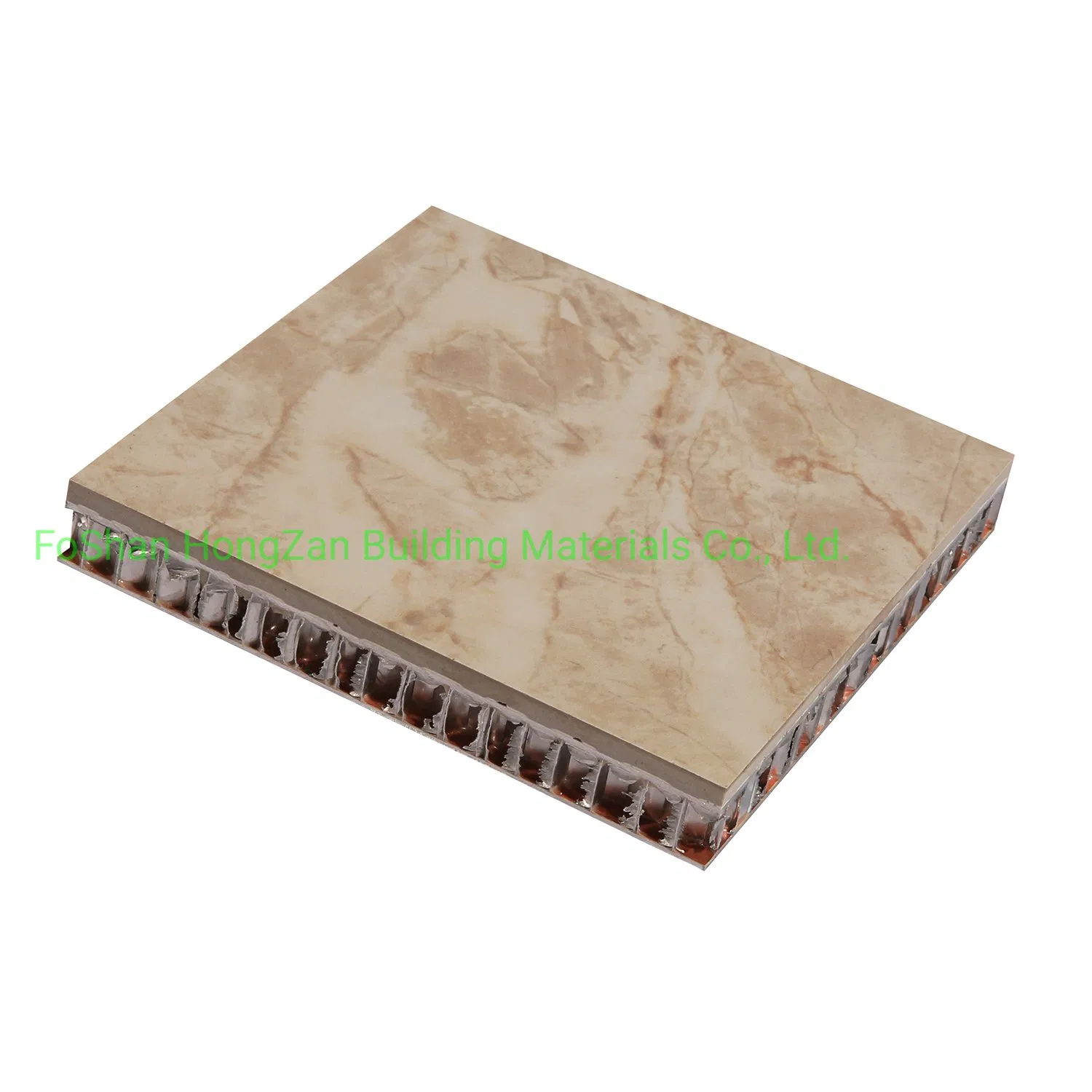

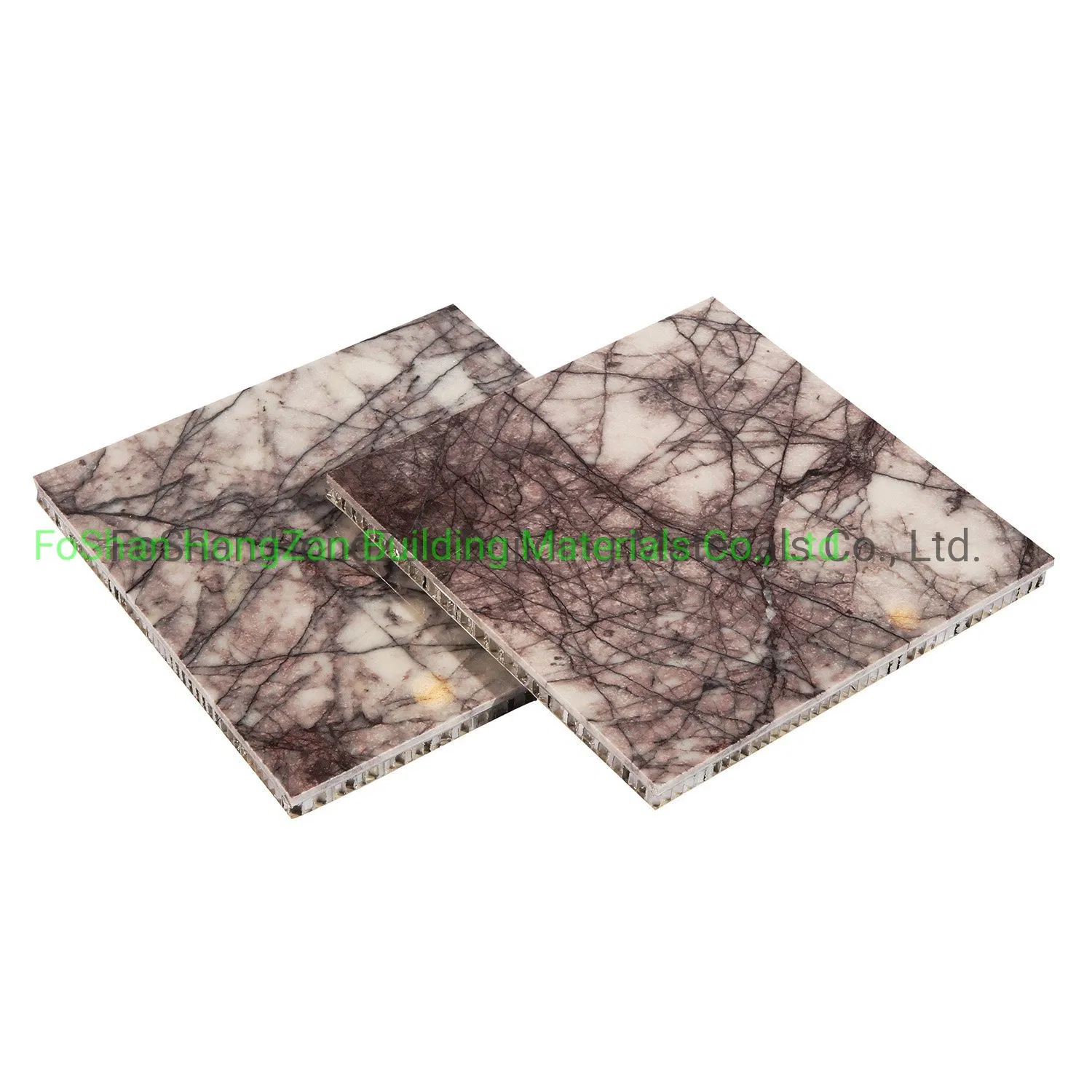

Stone Honeycomb Panel Stone Veneer for Cinema Wall Curtains Decoration Building

1 / 5

Stone Honeycomb Panel Stone Veneer for Cinema Wall Curtains Decoration Building

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SHP-630

Material

Stone, Aluminum Alloy

Performance

Ultra Thin Stone with Honeycomb Panel

Function

Low Weight, Strong Strength, Intensity, Smoothness

Aperture

5-0.05mm, 6-0.06mm for Honeycomb Core

Level

Application

Floor, Counter Top, Bathroom, Elevator

Stone Types

Marble, Granite, Travertine, Quartzite, Porcelain

Size Options

600*600mm, 1220*2440mm, Customized

Surface

Brushed, Polished, Buffing, Burnishing, Flamed

Edge Processing

Edge Closed, Edge Open, 45 Degree Closed

HS Code

76169990

Production Capacity

Product Category	Annual Capacity
Aluminum honeycomb panels	500,000 sqm
Aluminum honeycomb core & corrugated core	4.5 million sqm
Stone (marble, granite) & Ceramic honeycomb panel	80,000 sqm
FRP honeycomb panel	100,000 sqm
Rock wool Sandwich panel	100,000 sqm
Solid aluminum sheet	3,000,000 sqm

1. Product Introduction

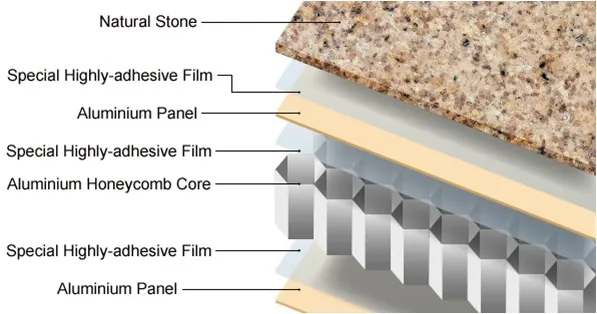

The Stone Honeycomb Panel is a high-tech product combining natural granite, marble, or other stones with an aluminum honeycomb panel. Utilizing advanced cutting technology, natural stone is sliced into 3-5 mm thin veneers and bonded with aluminum honeycomb. This composite maintains the natural beauty of stone while overcoming its inherent brittleness and heavy weight. It is recognized as one of the world's most advanced green environmental materials for construction.

📋Technical Specifications:

Marble Honeycomb Panel Details
Regular Size	Stone thickness: 3/5/8/10mm; Panel: 600600 / 24401220*20mm
Max Size	Stone: 30mm; Panel: 2440180030mm
Surface Treatment	Brushed, Polished, Chiselled, Honed, Grooved, etc.
Applications	Wall cladding, Ceiling, Partitions, Furniture, Elevators, Flooring

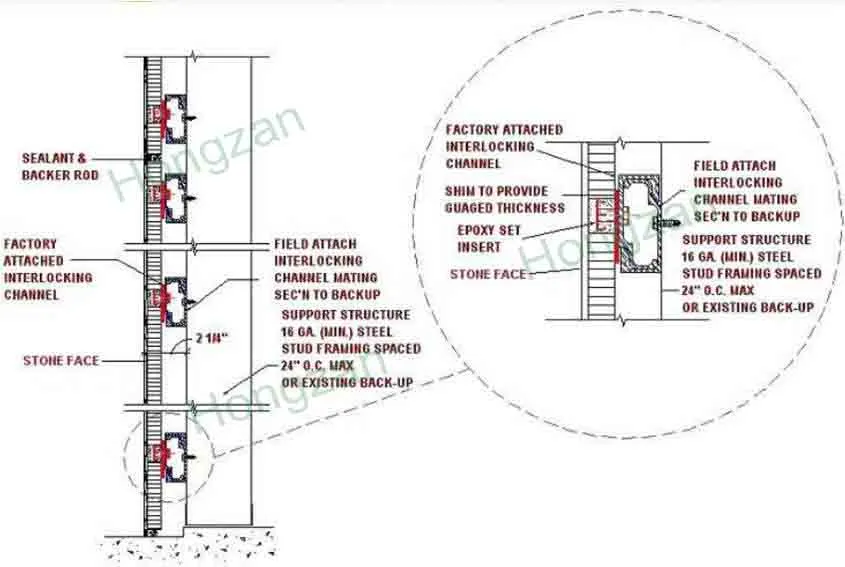

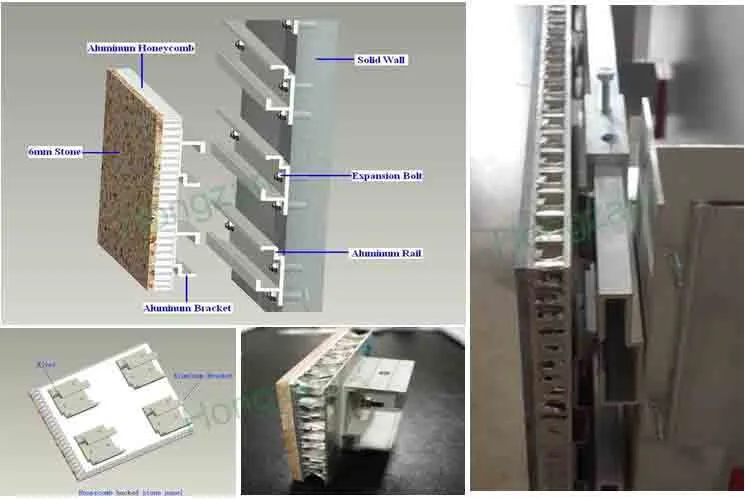

Standard Installation System

Our standard installing systems for stone honeycomb panels are designed for efficiency and durability. Customized systems are also available upon request.

Comparison: Honeycomb vs. Traditional Slab

Feature	Traditional Stone Slab	Stone Honeycomb Panels
Weight (per m²)	~75kg (at 30mm)	~15kg (at 20mm)
Flexibility	Unable to bend	Bendable (resilient to pressure)
Installation Cost	High (>$50.00/m²)	Low (<$16.00/m²)
Safety	Cracking on impact	Localized punctate cracking
Max Size	≤ 600 x 600 mm	Up to 1600 x 3200 mm

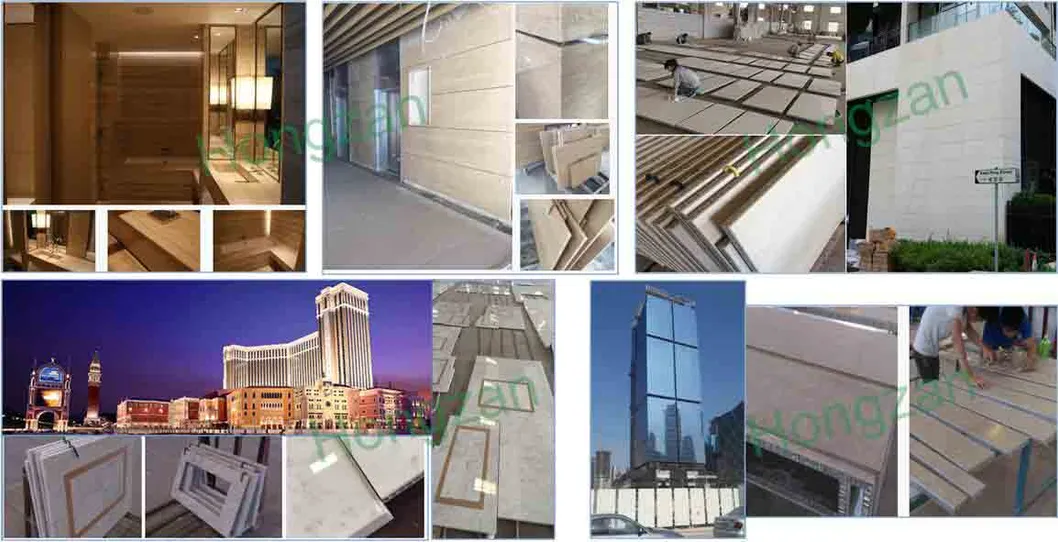

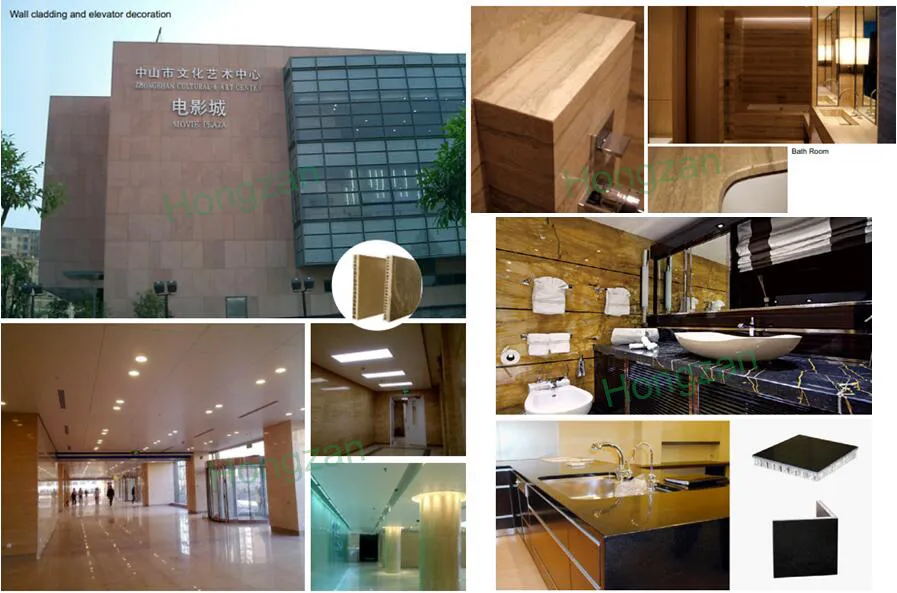

Applications & Projects

Ideal for exterior and interior wall cladding, bathrooms, cleanrooms, flooring, partitions, elevator decoration, and high-end furniture like countertops and tables.

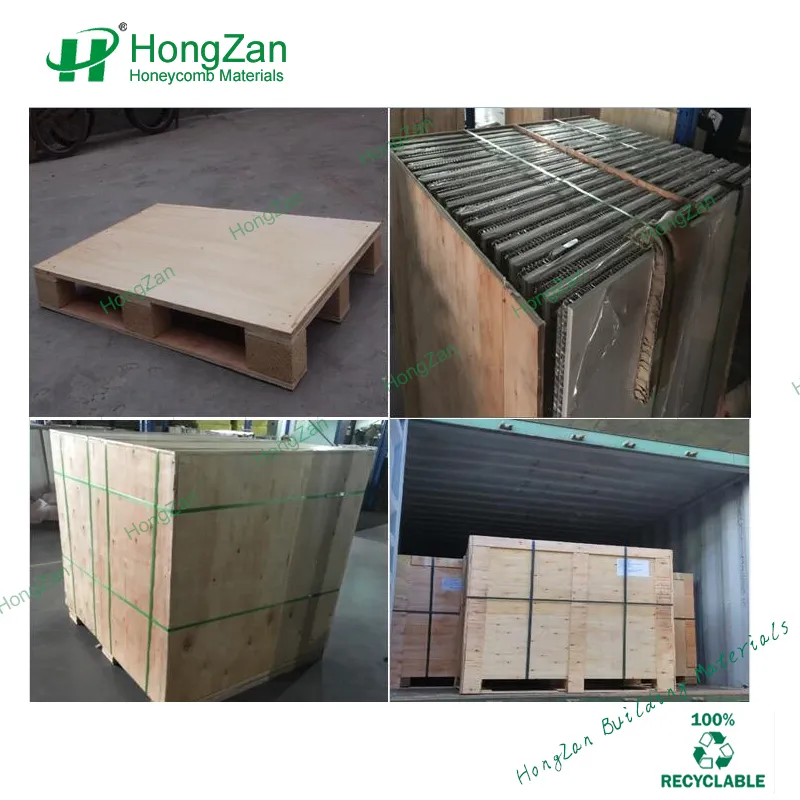

Packaging & Logistics

We utilize standard export wooden crates to ensure maximum protection during sea, land, or air transportation.

International Certificates

ISO 9001:2008 Quality Management System
A Class Fire Rate by Lloyd's (Marine Association)
BS 476, 475 by TUV PSD Singapore
EN13501-1 by ITS
ASTM standards by ITS

Frequently Asked Questions

Q1: What are the main advantages of Stone Honeycomb Panels over solid stone? The panels are significantly lighter (approx. 1/5th the weight), have higher impact resistance, are easier to install, and allow for much larger slab sizes.

Q2: Can these panels be used for exterior high-rise cladding? Yes, they are specifically designed for exterior curtain walls, providing excellent wind load resistance and thermal stability.

Q3: What types of stone finishes are available? We offer marble, granite, travertine, quartzite, and porcelain with surfaces that can be polished, brushed, honed, or flamed.

Q4: Are the panels fire-resistant? Yes, our panels achieve an 'A' class fire rating, meeting international safety standards such as BS 476 and EN13501-1.

Q5: What is the standard thickness for interior vs. exterior walls? For interior walls, 15/20mm is typical. For exterior walls, we recommend 25/30mm to ensure maximum durability against weather elements.

Q6: Is customization available for specific project designs? Yes, we provide full customization (MTM) for color, surface texture, size, shape, and even curved/bending panels.
